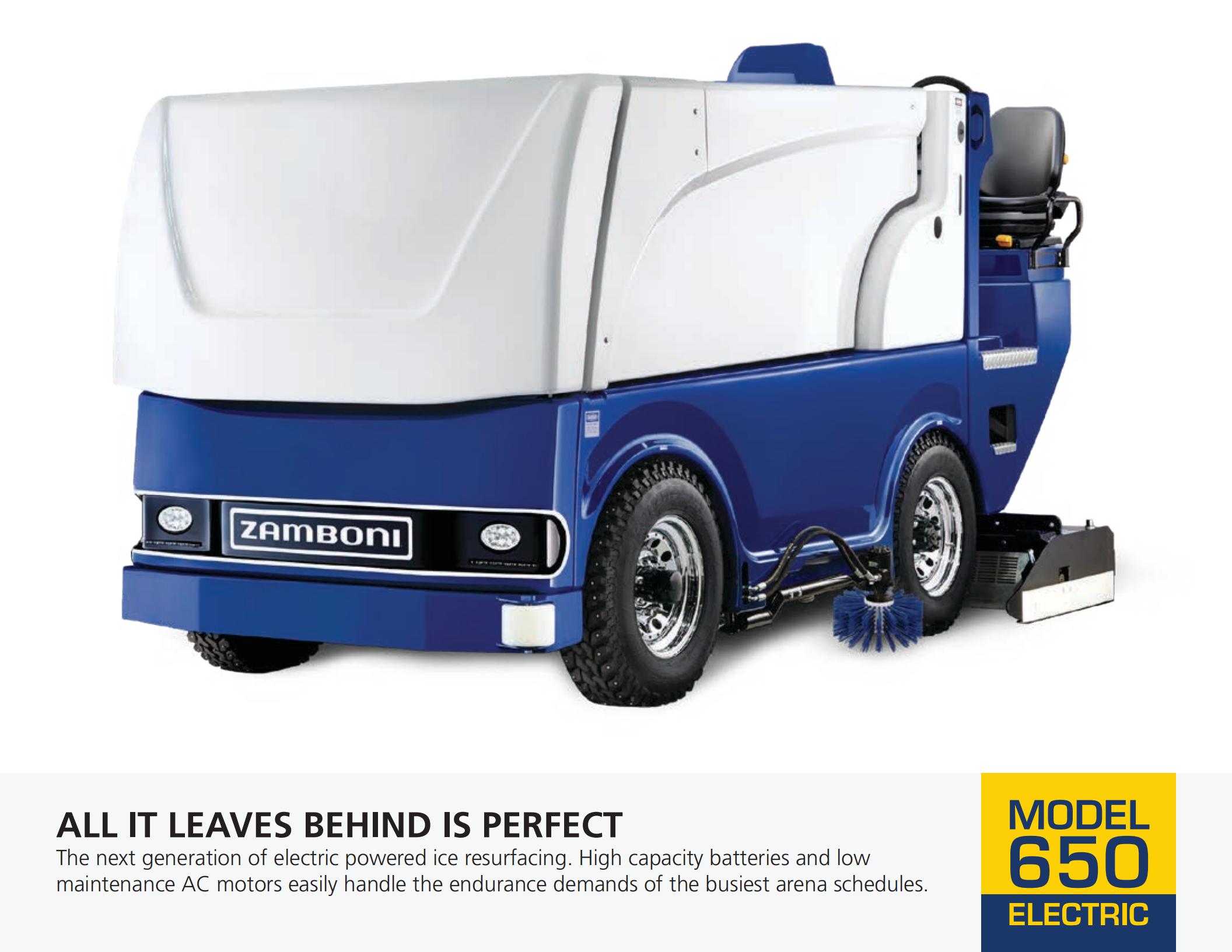

ZAMBONI 650

ALL IT LEAVES BEHIND IS PERFECT

The next generation of electric powered ice resurfacing. High capacity batteries and low maintenance AC motors easily handle the endurance demands of the busiest arena schedules.

LOW MAINTENANCE

The Model 650 retains the best features of the 500 Series machines, while introducing dramatic enhancements inside and out. The end result: a machine worthy of a new designation – the 600 Series. Engineered to challenge expectations, its sleek fiberglass body is well-suited to life in an ice arena. AC motors and controls provide new efficiencies and virtually eliminate associated maintenance.

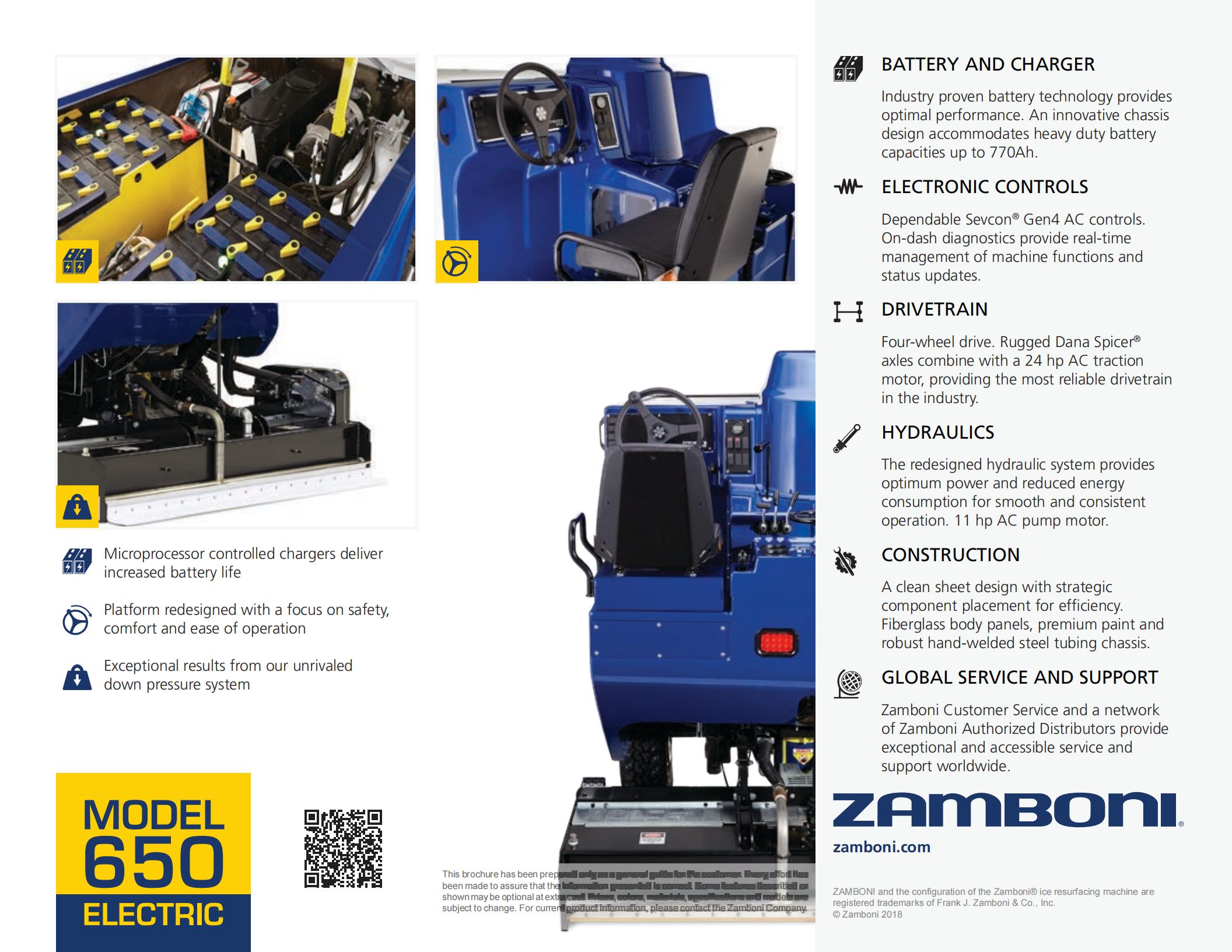

The clean sheet design introduces a chassis accommodating larger heavy-duty battery capacity options delivering additional resurfacings for your arena’s busy schedule. Industry proven lead acid batteries combine with microprocessor controlled chargers, affording longer battery life. The battery package is easy to access and maintain. Dependable Sevcon® Gen4 controls are built for tough industrial applications. On-board diagnostics provide management of machine functions and status updates.

Incorporating proven battery technology which meets the demands of busy ice arena schedules, the Model 650 is built to perform in the harsh environment it calls home.

ROBUST DRIVETRAIN

Four-wheel drive. Rugged Dana Spicer® axles combine with a 24 HP AC traction motor, providing the most reliable drivetrain in the industry.

The efficiently redesigned hydraulic system balances optimum power and reduced energy consumption for a smooth and consistent operation. The 11 hp AC pump motor powers the resurfacing processes. Intelligent chassis design and strategic placement of interior components ensure ease of access.

Over seventy years ago, Zamboni introduced the world’s first ice resurfacing machine. In the decades since, we’ve proven our position as the maker of the industry’s most reliable and efficient ice resurfacing machine.

QUALITY CONSTRUCTION

The innovative structural steel chassis is welded by hand and built to stand the test of time. The unique chassis design accommodates a variety of high capacity batteries. Sculpted fiberglass body panels are rigid and rust-free, allowing convenient access to systems and components. A redesigned distribution of weight provides additional down pressure to the conditioner for superior ice shaving performance.

The ergonomics of the operator area have been reimagined with a focus on safety and comfort. Snow tank window placement allows the operator to monitor snow transfer while seated. Vertical auger housing reduces noise and well-placed controls are positioned for ease of operation.

Zamboni ice resurfacers have a well-deserved reputation for producing the finest sheet of ice, even after many years of use. The Model 650 is the tailpipe emission-free machine capable of handling the formidable challenges of ice maintenance in the busiest of facilities.

Nothing else is even close.



STANDARD FEATURES



oni for their ice resurfacing needs.



STANDARD FEATURES

LIST OF STANDARD FEATURES (click to expand)

2 Year Warranty
400 Micron Wash Water Deep Filter Bag
Aluminum Alloy Wheels
Automatic Snow Breaker
Battery Charger: Microprocessor Controlled
Brushless AC Motors
Chassis: Strong All Welded Steel Tubing
Conditioner Safety Guards
Dependable Sevcon® Gen4 Controls
Digital Training and Reference Materials
Dual Water Fill Pipes
Electric Water Level Gauge
Familiar Automobile-Style Foot Controls
Four-Wheel Drive
Guide Wheel
High Quality 9 Micron Filter
High Speed Vertical Auger
Hydraulic Oil Level Sight Gauge
LED Headlights and Tail lights
On-Dash Diagnostics
Operator Area Storage Bins
Parking Brake
Power Steering
Premium Polyester Felt Spreader Towel
Replaceable Poly Conditioner Side Plate
Rugged Dana Spicer® Axles
Rust-Free Poly Ice Making Water Tank
Rust-Free Poly Wash Water Tank
Single Point Battery Watering System
Snow Tank Safety Stand
Spare Tire and Wheel
Stainless Steel Water Distribution Pipe
Steering Wheel Spinner Knob
Touch-Up Paint Kit
Tungsten Carbide Studded Tires
Wide Spectrum of Premium Automotive Paint Colors
Zamboni Power Brush Board Brush System



OPTIONS

LIST OF OPTIONS (click to expand)

Advanced Water System (AWS)
Back Up Alarm
Blade Change System
Board Spray
Conditioner: 96” Blade
Conditioner: Galvanized
FastICE® Ice Making System
Heated Ergonomic Comfort Design Seat
• Armrest
• Seatbelt
IceCaps® Wheel Advertising System
Level-Ice
Rotating Beacon Light
Snow Tank Light
Tire Wash System
Wash Water to Ice Making Water Transfer
Zamboni Connect System



Key Data
