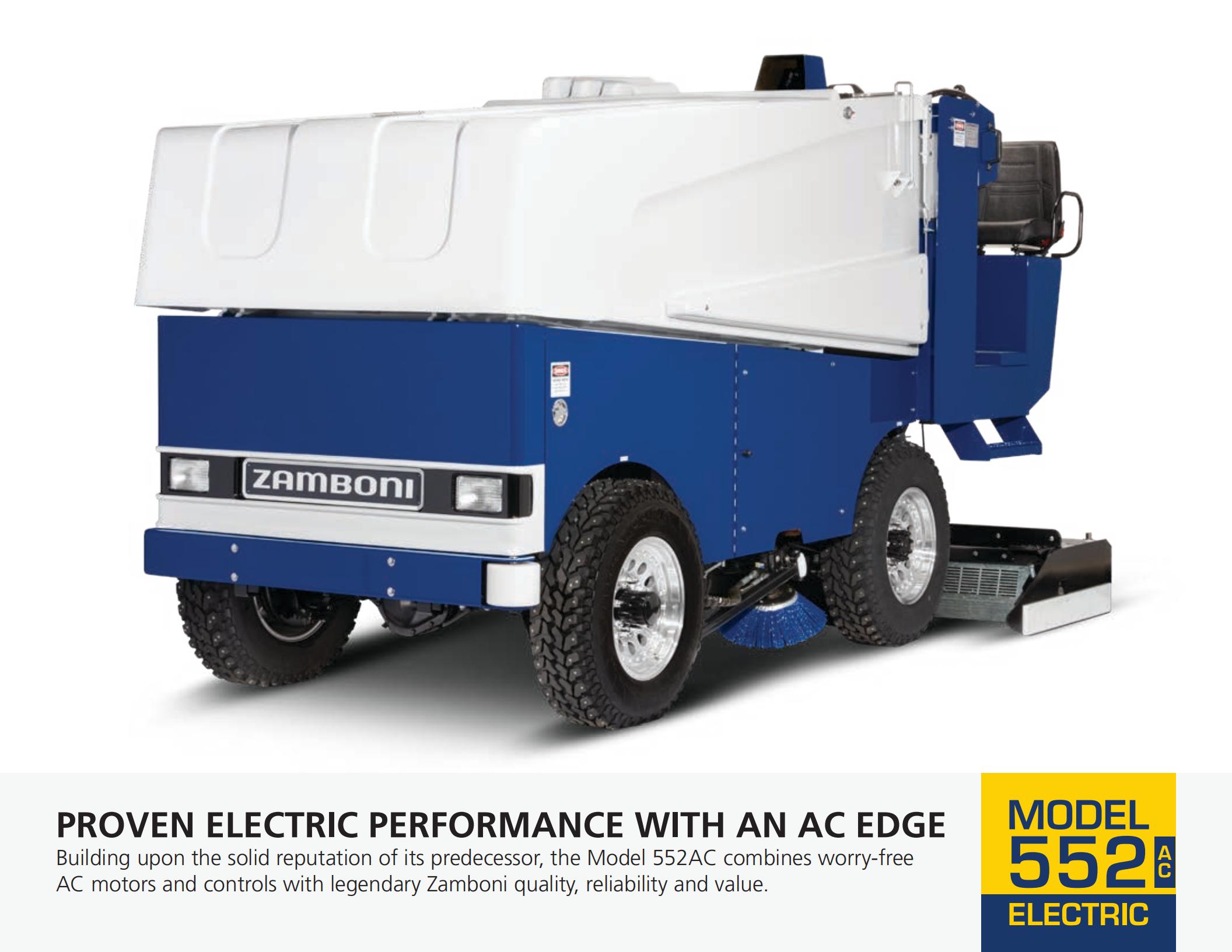

RESURFACE, RECHARGE, REPEAT...
Zero battery maintenance and lithium-ion power combine for the ultimate upgrade to the world’s most popular electric ice resurfacer
BATTERY AND CHARGER Lithium-ion batteries charge quickly between resurfacings, eliminating overnight charging. Sealed zero maintenance batteries are truly emission-free. Charging is controlled by battery management system to optimize charging and balancing.
On-dash multi-function display features a battery discharge indicator, hour meter and diagnostic information. Dependable Sevcon® Gen4 controls are proven in tough industrial applications.
Four-wheel drive with rugged Dana Spicer® axles and a 24 hp traction motor, providing the most reliable drivetrain in the industry.
11 hp AC pump motor provides optimum power and reduced energy consumption for smooth and consistent operation.
Robust hand-welded steel tubing chassis and rust-free poly water tanks for durability in the harsh environment it will call home.
GLOBAL SERVICE AND SUPPORT
Zamboni Customer Service and a network of Zamboni Authorized Distributors provide exceptional and accessible service and support worldwide
Ice Surface: Up to 200 ft. x 100 ft.
Battery: 210 Ah / 315 Ah Lithium-ion
510 Ah Lead Acid
Snow Tank Capacity: 125 cu. ft.
Ice Making Water Tank Capacity: 195 gal.
Blade Length: 77 in.
