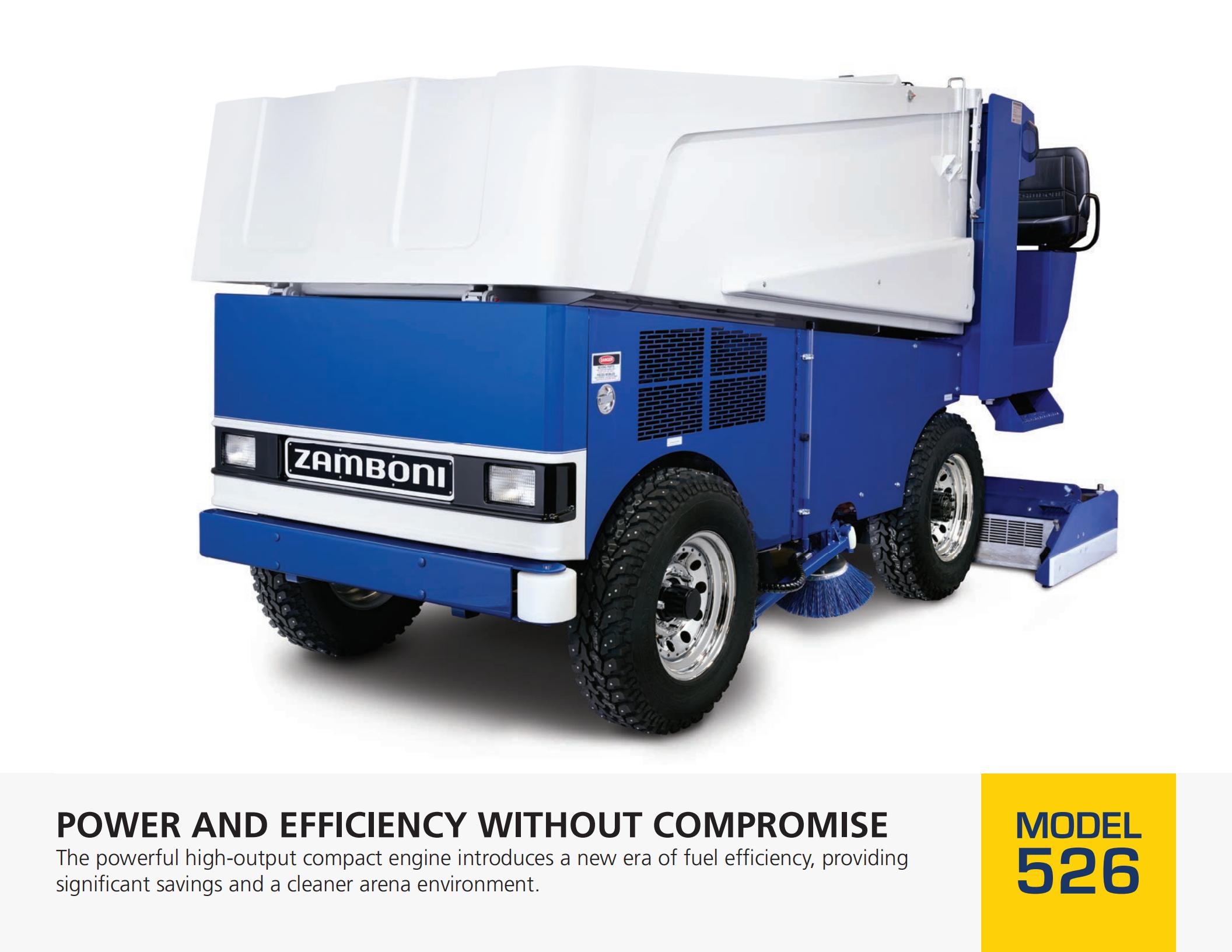

POWER AND EFFICIENCY WITHOUT COMPROMISE

POWERFUL AND EFFICIENT

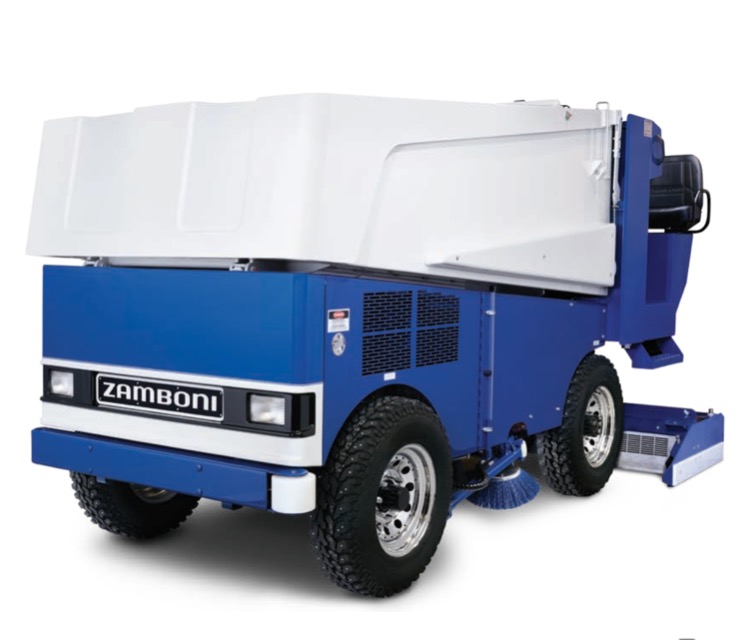

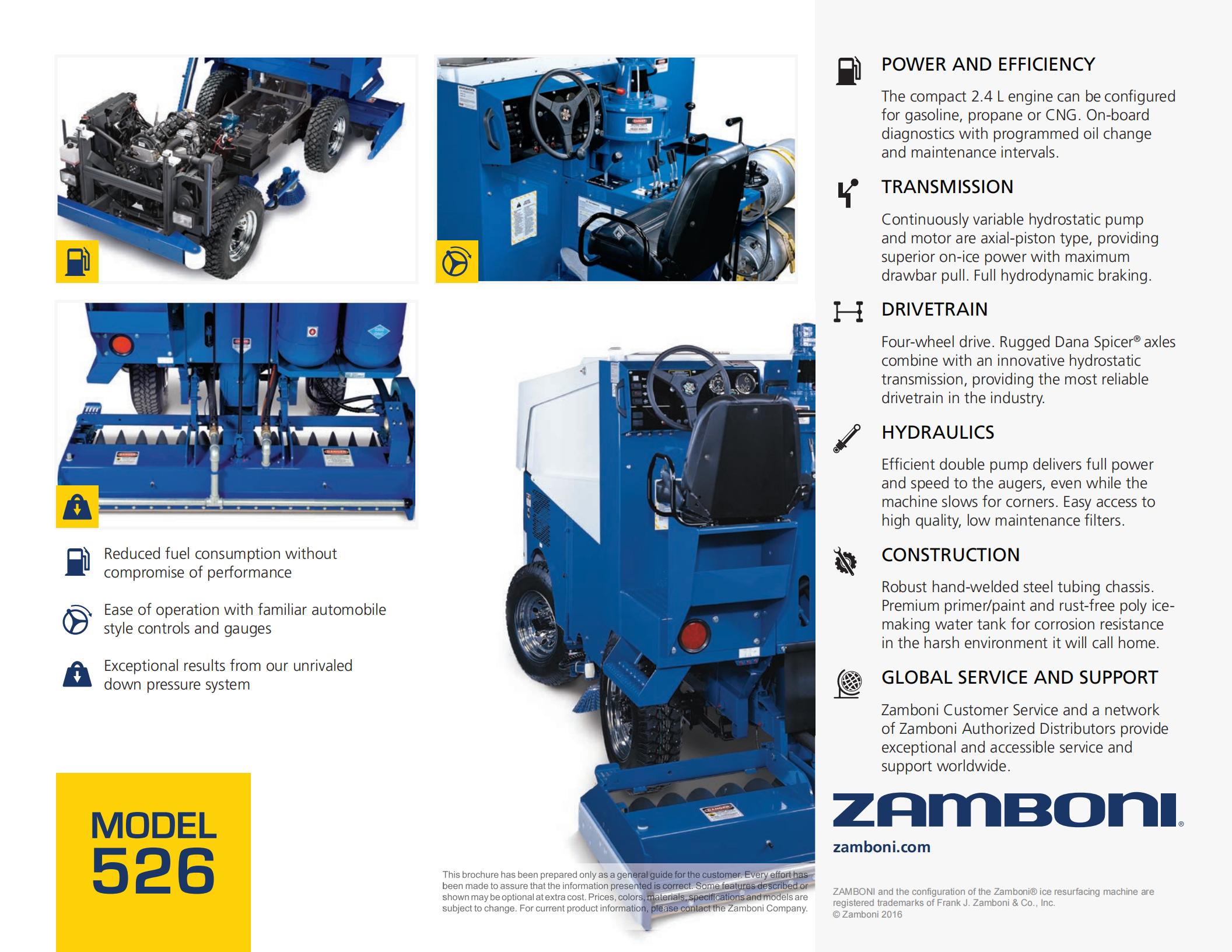

The efficient 2.4 L engine of the Model 526 can be configured to accommodate gasoline, propane or CNG fuel. On-board diagnostics with programmed oil change and maintenance interval notifications provide engine performance data and technical information on the go.

The hydrostatic transmission affords unmatched power at any speed. The efficient double pump delivers full power and speed to the augers, even while the machine slows for corners. Continuously variable hydrostatic pump and motor are axial-piston type, resulting in superior on-ice power with maximum drawbar pull. Full hydrodynamic braking for additional efficiency.

The compact high output engine combined with the legendary power and efficiencies of the Zamboni hydrostatic transmission provide industry-leading fuel savings, the lowest emissions and a cleaner arena environment. Read more about Model 526 efficiency here.

ROBUST DRIVETRAIN AND HYDRAULICS

Fifty years ago, Zamboni introduced four-wheel drive machines with an innovative hydrostatic transmission. In the decades since, we’ve proven our position as the industry’s most reliable and efficient ice resurfacing machine.

The Model 526 features four-wheel drive with rugged Dana Spicer^® axles . Its powerful double pump for the vertical and horizontal augers delivers strong conveyor performance. The machine’s hydraulic down pressure is unrivaled, providing superior shaving results.

The direct shaft driven “piggy-back” mount ensures trouble-free service. High quality 10 and 20 micron filters are easy to access. The hydraulic system provides optimum power and reduced energy consumption for smooth and consistent operation reinforcing our position as the proven performer with the most rugged drivetrain in the industry.

QUALITY CONSTRUCTION

Designed for the tough demands of an ice arena. Our machines are built by hand. One at a time. By skilled craftsmen dedicated to building the highest quality products in an industry known to put equipment to the test.

Robust welded steel tubing chassis contributes to the sound construction of the machine. The ergonomically designed operator’s compartment has well-placed controls. Exceptional results from our unrivaled down pressure system which puts the power where you need it. Premium primer and paint, rust-free poly ice making water tank and stainless steel hardware afford corrosion resistance.

The Model 526 is capable of handling the formidable challenges of ice maintenance. Zamboni ice resurfacers have a well-deserved reputation for producing the finest sheet of ice, even after many years of use.

Nothing else is even close.
